Replacing the Exhaust Fans – Emblaser Pro

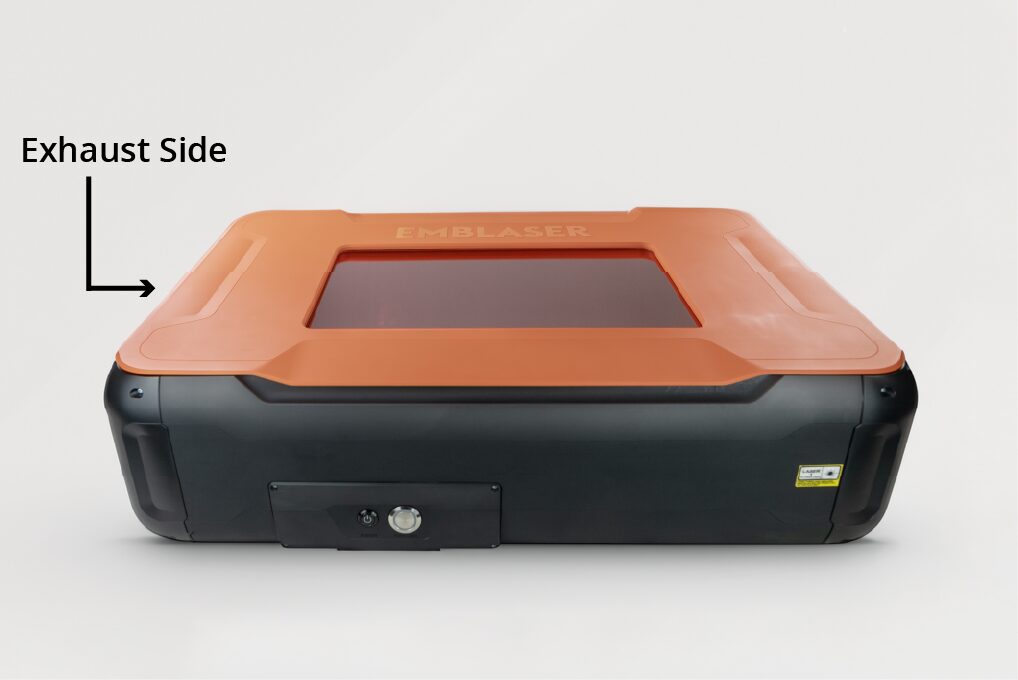

Here are the steps to check, clean or replace you Emblaser Pro exhaust fans.

Please follow them carefully and contact us if you run into any problems: help@darklylabs.com

Tools Needed:

  • Torx T10 Screwdriver
  • Hex 2.5mm tool

Step 1:

*** Make sure you turn your machine off and unplug the power before proceeding. ***

Step 2:

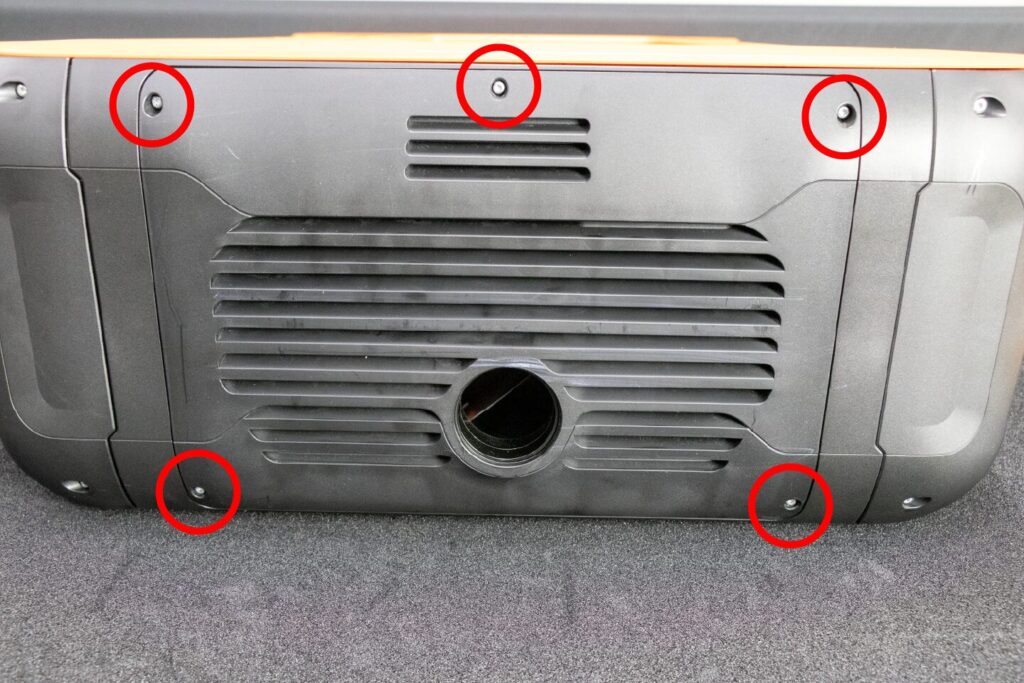

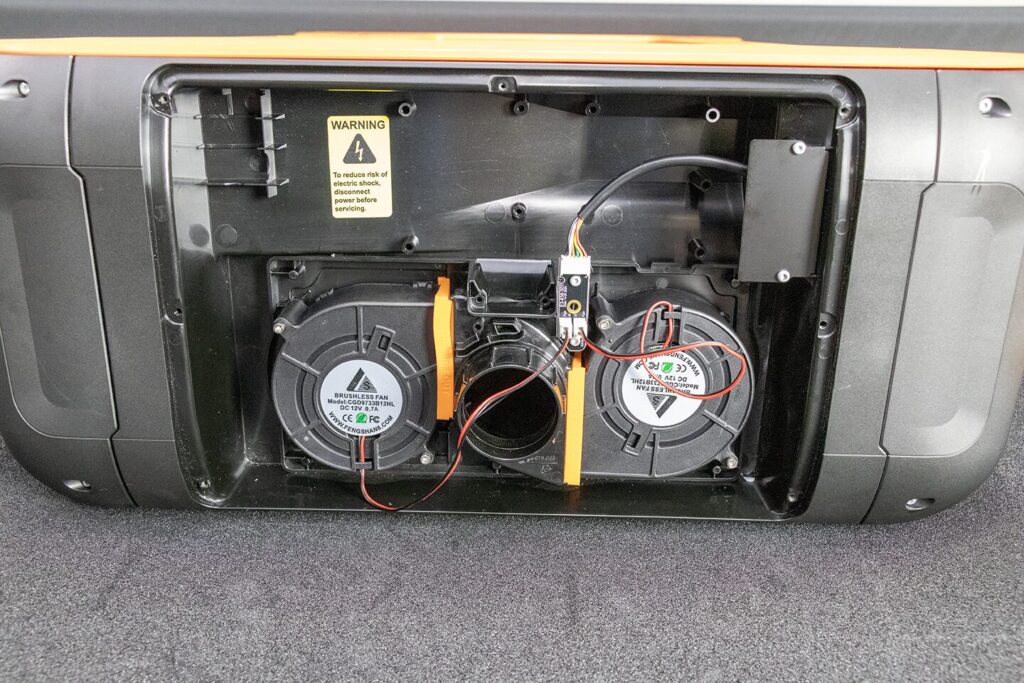

Using Torx T10 screwdriver, remove the 5 screws holding the exhaust side cover in place.

Step 3:

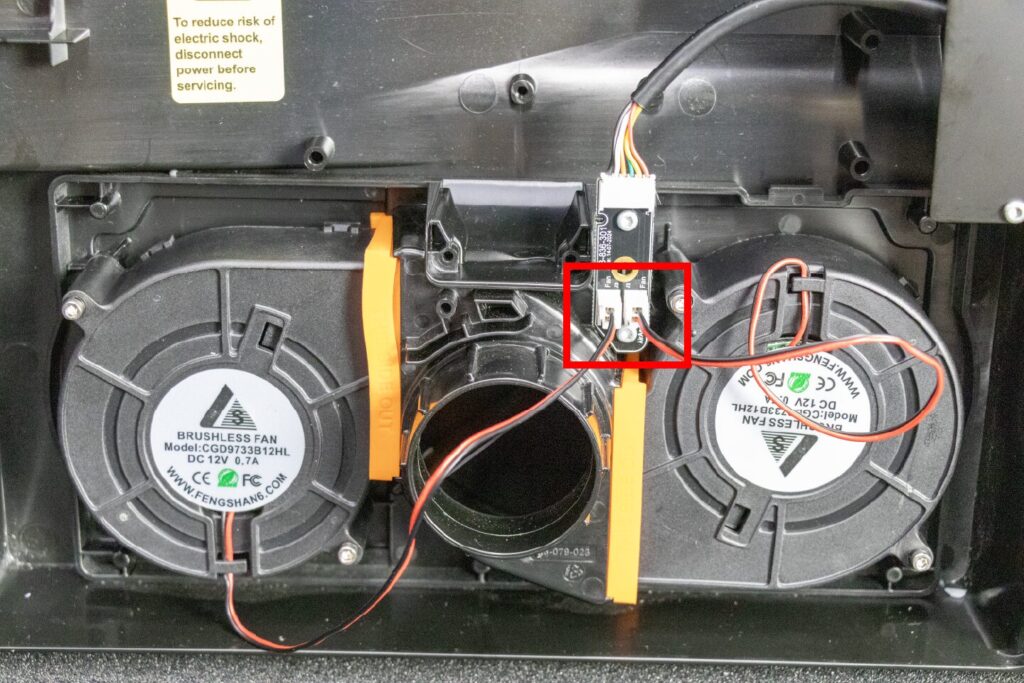

Locate the 2 fan plugs and carefully unplug them.

Step 4

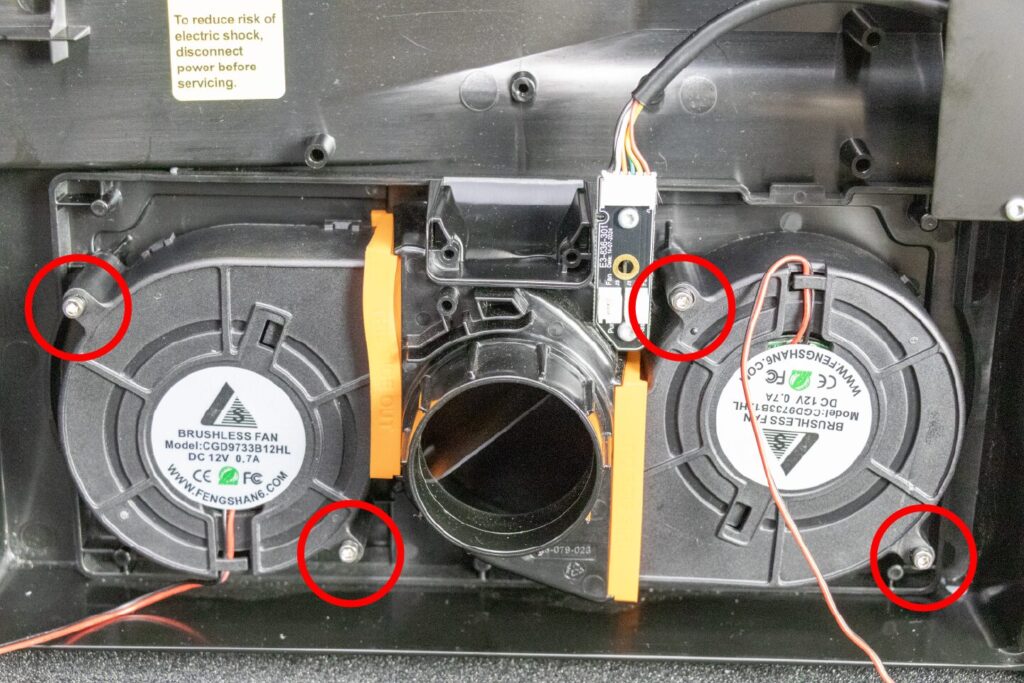

Using the Hex 2.5 Tool, remove the 4 screws holding the fans in place.

Each screw has a small washer. Be careful to not loose them.

Step 5

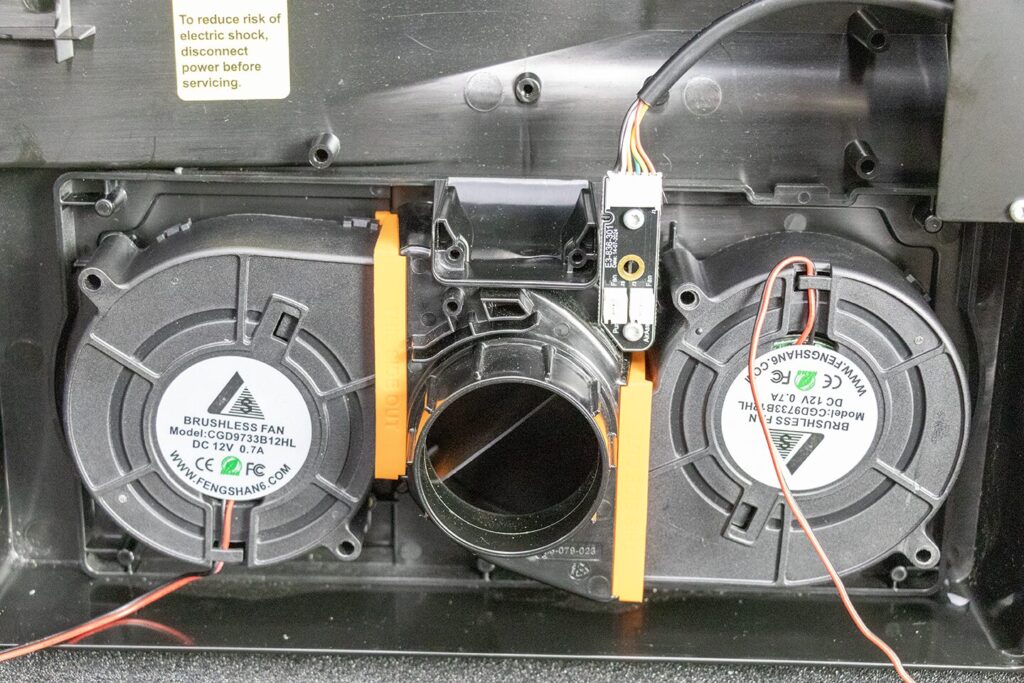

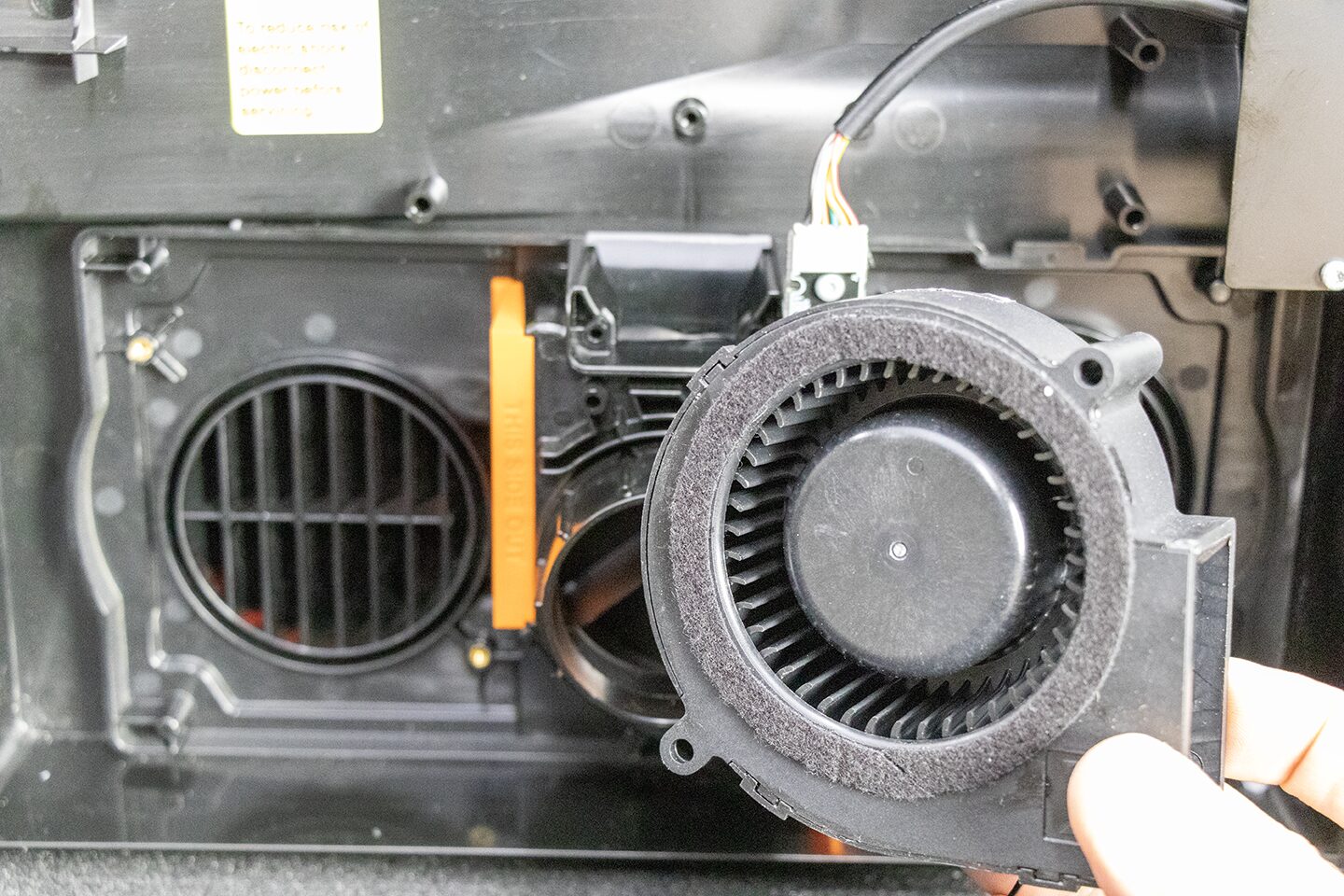

The fans can now be removed for cleaning or replacement.

To re-install, follow the above steps in reverse.
