Tools Needed:
- Filling Syringe (supplied with your machine)
- Torx T10 Screwdriver
- Plain or de-mineralised water.
Step 1:
*** Make sure you turn your machine off and unplug the power before proceeding. ***
Step 2:

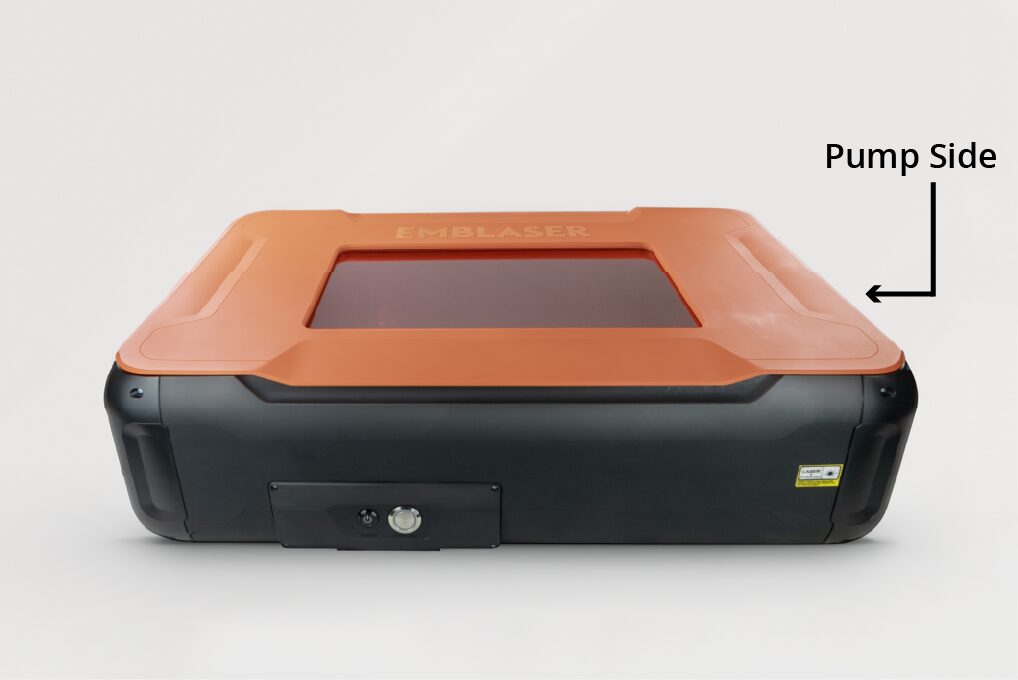

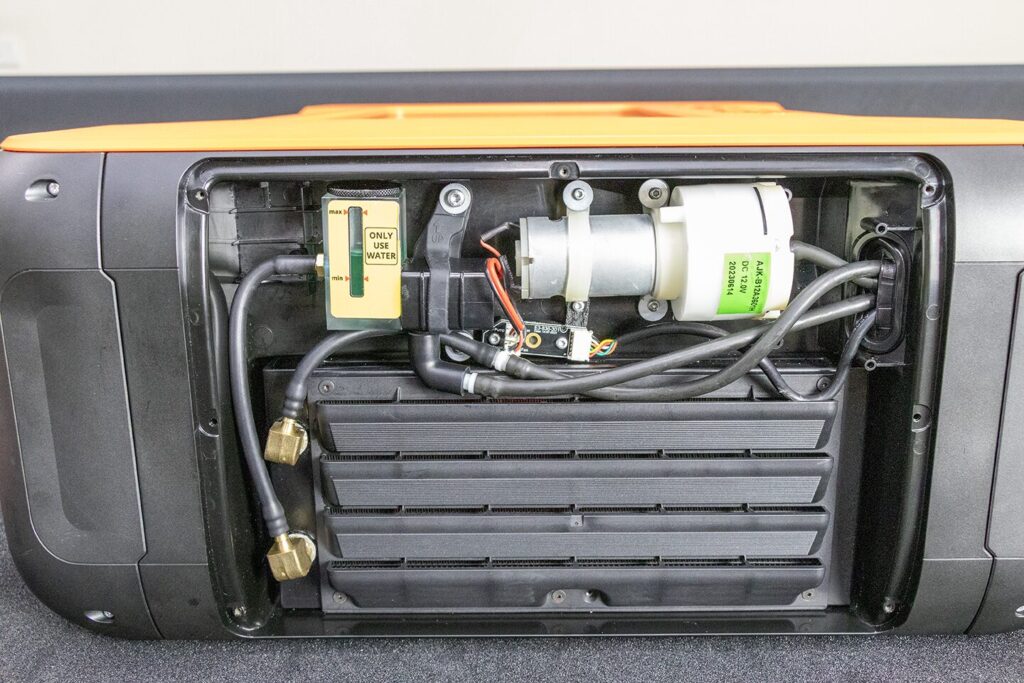

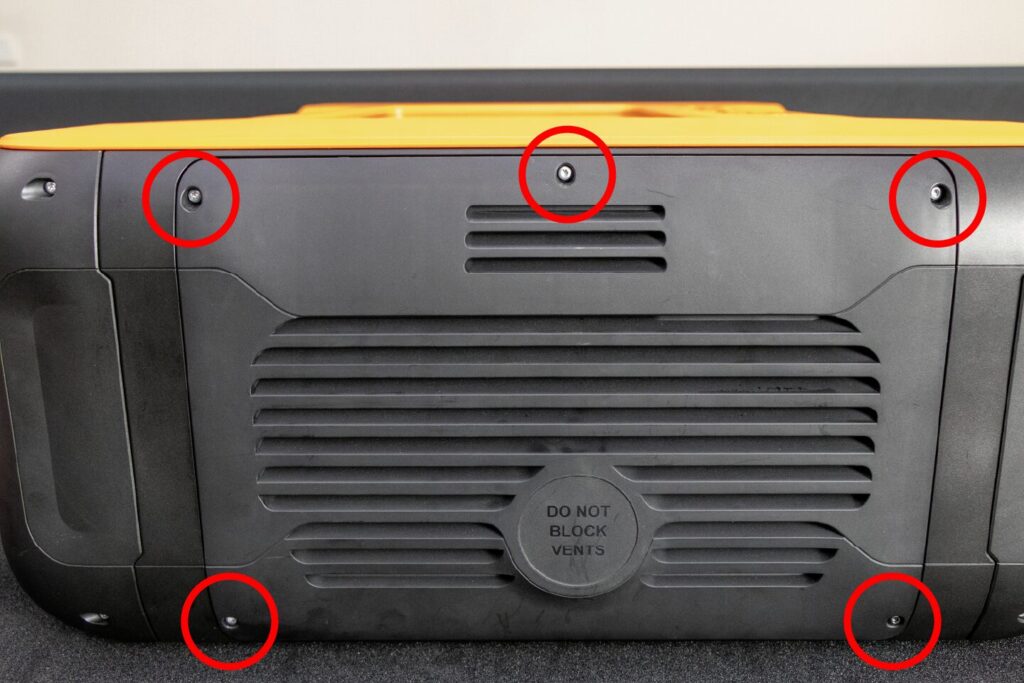

Using Torx T10 screwdriver, remove the 5 screws holding the pump side cover in place.



Step 3:

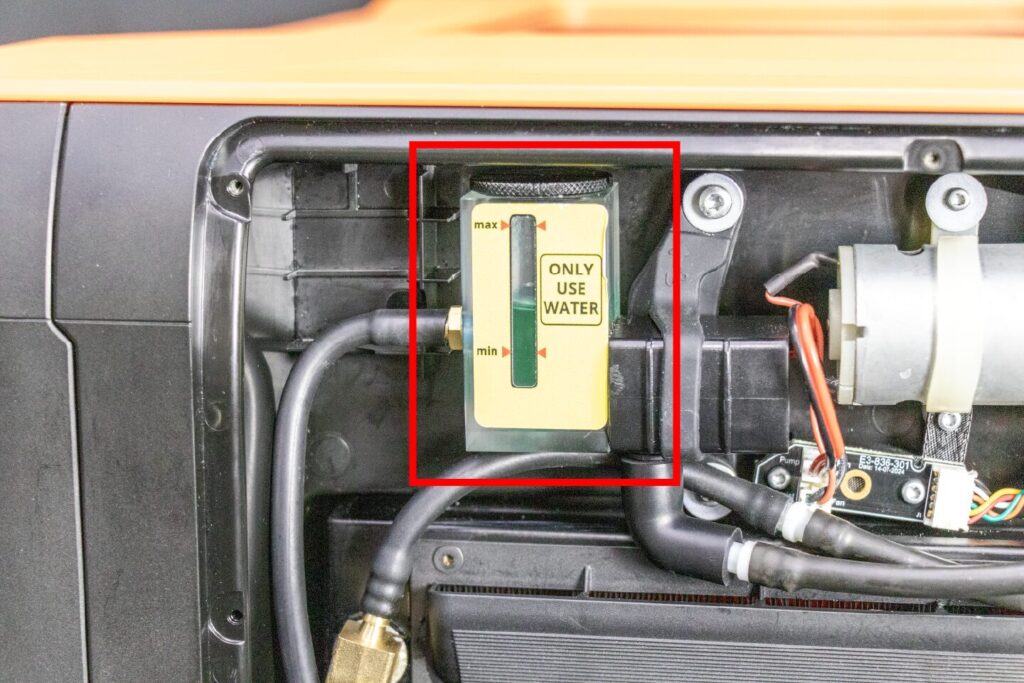

Check the reservoir liquid level. In this case it looks like we need to add some water to top it up.

Step 4
The reservoir is held in place by a silicone bracket. Gently move the reservoir out to give you access to the cap.

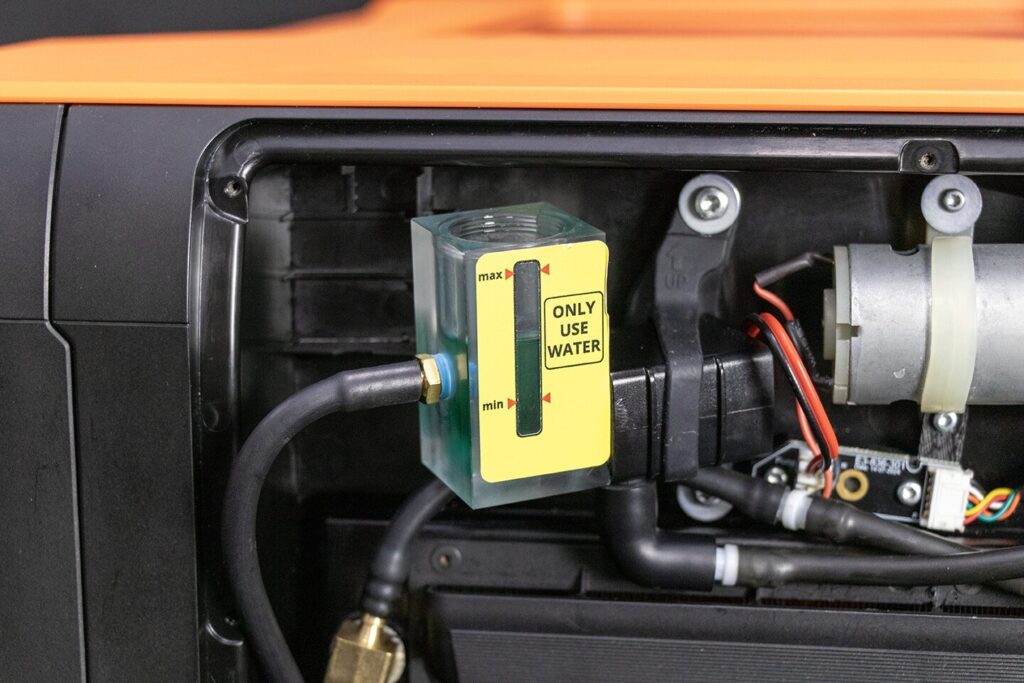

Then carefully unscrew and remove the cap.

Step 5

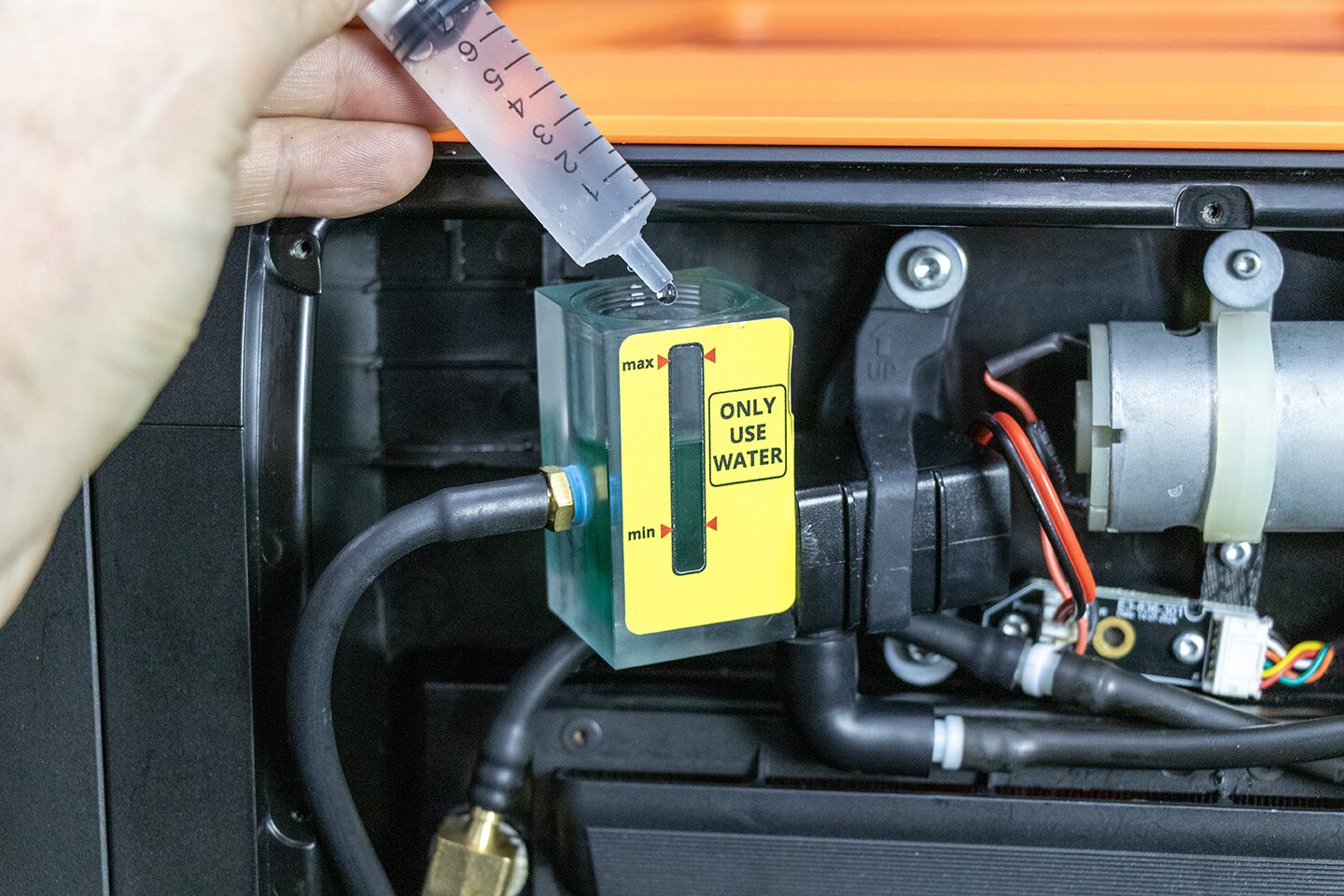

Using the syringe provided with your machine, carefully top up the reservoir with water to the ‘max’ level shown. You can use plain tap water or for a better result, de-mineralised water (normally available from a hardware store).
Do not overfill.
IMPORTANT: Only use water. Never use any additives or other liquid. This could cause permanent damage to your cooling system or prevent it from working effectively.

Step 6

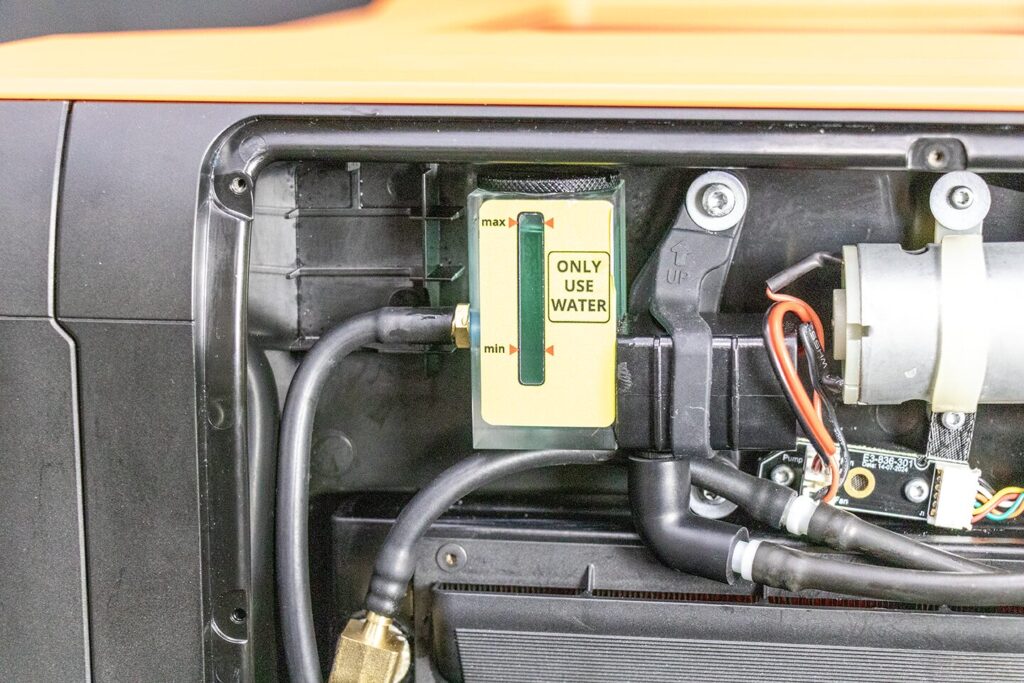

Screw the cap back on and re-position the reservoir back to its original position.

Step 7
You can now re-attach the cover.
Contact us if you run into any problems: help@darklylabs.com
